Classical Segmentation

Classical Segmentation#

# /// script
# requires-python = ">=3.12"
# dependencies = [
#     "matplotlib",
#     "ndv[jupyter,vispy]",
#     "numpy",
#     "scikit-image",
#     "scipy",
#     "tifffile",
# ]
# ///

Overview#

This notebook covers the following steps in building a classic segmentation pipeline:

Step	Concept	Why it matters
0	Setup	Import dependencies
1	Loading an Image	Open tif image and display it
2	Filtering	Learn how to filter images to improve thresholding results
3	Thresholding	Learn how to use thresholding to generate a binary mask
4	Labeling	Learn how to label binary masks
5	Mask Refinement	Learn how to use apply mathematical operations to refine binary masks
6	Processing Many Images	Learn how to apply processing steps to many images

Each chapter has:

Summary – review core concepts from lecture.
✍️ Exercise – your turn to write code!

In this exercise, we will use the DAPI dataset containing images of DAPI-stained nuclei.

0. Setup#

Concept#

We are going to be using existing Python libraries in this lesson, so we need to specify them at the beginning of our code. This is called specifying our dependencies. It’s standard practice to specify all dependencies at the very beginning of your code.

For learning purposes, we will import everything here step by step, as it is introduced in the following sections.

✍️ Exercise: Specify dependencies and run the code block for each section#

# specify dependencies
import matplotlib.pyplot as plt
import ndv
import numpy as np
import tifffile
from scipy.ndimage import distance_transform_edt
from skimage.color import label2rgb
from skimage.feature import peak_local_max
from skimage.filters import gaussian, threshold_otsu
from skimage.measure import label
from skimage.morphology import binary_closing, disk, remove_small_objects
from skimage.segmentation import watershed

1. Loading an Image#

Concept#

To work with an image in Python, we need to specify where the image file is so that we can read, or load, it. Once the image file is read, we can view it and process it.

Specifying your file’s path#

Once you have found your file’s path, you should assign it to a variable to make it easy to work with. Here’s an example:

file_path = '/Users/edelase/Desktop/projects/bobiac/lectures/classic_segmentation/img.tif'

Caution: Be wary of spaces in folder names, as they sometimes cause terminal to add \ or / to file directories where they should not be. It is best practice to always use _ in folder names whenever you would have wanted to have a space.

Note: Specifying file paths is a common task outside of image segmentation with Python, so some of you may have experience with this already. Note the terminology though. An individual file's location is a path. A folder's path containing an individual or multiple files is called a directory.

✍️ Exercise: Specify your image file’s path and assign it to the variable `image_path`#

image_path = "../../../_static/images/classic_seg/DAPI_wf_0.tif"

Loading an image#

There are many different ways to read image files in Python. In this lesson, we will use the Python library tifffile, to read .tif image files. We will need to import tifffile in Setup. We should also import numpy to take advantage of accessing np.array tools you have learned about in the previous lesson.

Name	Description	How to import it	Documentation Link
`tifffile`	Reads and stores tiff files as np.arrays	`import tifffile`	tifffile
`numpy`	Scientific computing package that contains np.arrays	`import numpy as np`	numpy

In order to read an image with tifffile, we will need to import it, and then provide it with the image’s path. We will also import numpy too, although it is not necessary for tifffile to load the image.

import tifffile # put in Setup
import numpy as np # put in Setup
raw_image = tifffile.imread(image_path)

tifffile.imread() will use that image_path you inputted to find your file and read it. It will then return the read file. Since we will be wanting to work with this file, we assign it to the variable raw_image for easy reference.

✍️ Exercise: Use `tifffile` to read the image and assign it to the variable `raw_image`. Then, print its shape and dtype#

Remember to add your imports to Setup!

raw_image = tifffile.imread(image_path)
print(raw_image.shape, raw_image.dtype)

(2304, 2304) float32

Note: When we print this image's dtype, we see that it is uint32, or 32 bit. This is because the images we will be working with in this lesson did not come straight from the microscope. Before providing them to you, we applied some background correction steps including flat-field correction and background subtraction. You will learn about background subtraction in a future lesson.

Viewing the image#

In Python, reading the image and viewing it are two separate actions. Now that we have read the image and assigned it to the variable raw_image, we can view it using ndv, which we will need to import in Setup.

Name	Description	How to import it	Documentation Link
`ndv`	Multi-dimensional image viewer	`import ndv`	ndv

We can use ndv to view raw_image as follows:

import ndv # put in Setup
ndv.imshow(raw_image)

ndv.imshow() will use that raw_image you inputted to display your image. It will then return the image displayed in the ndv viewer.

✍️ Exercise: Use `ndv` to view the image `raw_image`#

Remember, we need to import ndv in Setup!

ndv.imshow(raw_image)

snapshot

2. Filtering#

Concept#

Filters change image pixel values using a mathematical operation. Here, we use them to smooth and reduce noise from images. Doing so can help improve thresholding results.

Applying a filter to an image#

Here’s a summary of the filters we covered in lecture that are good at reducing noise from images:

Filter Name	Description	How to import it	Documentation Link
mean filter	For a given kernel size, sums values in a list and and then divides by the total number of values	`from skimage.filters.rank import mean`	skimage.filters.rank.mean
Gaussian blur filter	For a given kernel size, multiply each value by a Gaussian profile weighting, then divide by the total number of values	`from skimage.filters import gaussian`	skimage.filters.gaussian
median filter	For a given kernel size, take the middle number in a sorted list of numbers	`from skimage.filters import median`	skimage.filters.median

Don’t forget to review the documentation to see how to specify the kernel size for each filter!

✍️ Exercise: Write code to apply a Gaussian blur filter to `raw_image` and assign it to the variable `filtered_image`#

Remember - we need to import the gaussian function from skimage.filters in Setup!

filtered_image = gaussian(raw_image, sigma=1)

✍️ Exercise: View `filtered_image` with `ndv`#

ndv.imshow(filtered_image)

snapshot

3. Thresholding#

Concept#

Thresholding is when we select a range of digital values, or intensity values, in the image. These selected values are how we define regions of the image we are interested in.

Defining a threshold#

We need to define a minimum intensity cutoff which separates the background (what we don’t care about) from the foreground (what we do care about). We can manually pick an intensity value as this cutoff value like below:

threshold = 50

However, manually changing the value assigned to threshold until we find an optimal intensity cutoff value is tedious and may vary between images in a dataset. Therefore, it is best practice to instead use established thresholding algorithms to automatically define an intensity cutoff value. skimage.filters contains many different types of thresholding algorithms, but from that we will be using the Otsu thresholding algorithm threshold_otsu.

Thresholding Algorithm	Description	How to import it	Documentation Link
Otsu thresholding	Returns threshold using Otsu’s method	`from skimage.filters import threshold_otsu`	threshold_otsu

Note: skimage.filters also has a try_all_threshold() function that takes an inputted image and returns a figure comparing the outputs of different thresholding methods. It can be a helpful tool to pick a good thresholding algorithm!

We can use threshold_otsu from skimage.filters as follows:

from skimage.filters import threshold_otsu # put in Setup
threshold = threshold_otsu(filtered_image)

Here, threshold_otsu() will use that inputted filtered_image to calculate an intensity cutoff value. It will return the cutoff value assigned to the variable threshold.

✍️ Exercise: Write code to calculate a threshold on `filtered_image` using Otsu’s method#

Remember - we need to import the threshold_otsu function from skimage.filters in Setup!

threshold = threshold_otsu(filtered_image)

Generating a binary mask#

We now want to use this cutoff value to generate a binary mask, which is an image that has only 2 pixel values: one corresponding to the background and one corresponding to the foreground. By generating the binary mask, we will be able to evaluate whether this threshold is a sufficient cutoff value.

We can generate the binary mask by using any comparison operator. Since we want to accept values above a given threshold as foreground, let’s use the comparison operator >:

binary_mask = filtered_image > threshold

Python will interpret this line of code by going pixel by pixel through filtered_image and assigning True values where a pixel is greater than threshold and assigning False values where a pixel is equal or less than threshold. The output will be the binary mask image, filled with True and False. Since this binary mask is something we will be working with, we should assign it a variable, such as binary_mask.

✍️ Exercise: Write code to threshold `filtered_image` and generate a binary image assigned to the variable `binary_mask`. Print this image’s minimum and maximum values.#

binary_mask = filtered_image > threshold
print(np.max(binary_mask))  # binary_mask max value
print(np.min(binary_mask))  # binary_mask min value

True
False

Comparing the binary mask to the raw image#

We can use matplotlib.pyplot to view the raw_image and binary_mask side by side. We first need to import matplotlib.pyplot in Setup, which can be abbreviated as plt for simplicity.

Name	Description	How to import it	Documentation Link
`matplotlib.pyplot`	Creates interactive plots	`import matplotlib.pyplot as plt`	matplotlib.pyplot

Just as you learned in the last lesson, we can use plt to plot images. Plotting 2 images for side by side comparison is a very useful task, so let’s package this code into a function. You can get started with the template below:

import matplotlib.pyplot as plt # put in Setup

def double_image_plotter(img_1, img_2):

    # Create a figure and axis
    fig, axes = plt.subplots(1, 2, figsize=(8, 6))  # 1 row, 2 columns

    # Plot images
    # add code here!

    plt.tight_layout()  # Adjust layout

    # Show the plot
    plt.show()

We can then call this double_image_plotter function whenever we want to plot 2 images side by side! We can do that by writing:

double_image_plotter(image_1, image_2)

✍️ Exercise: Write a function named `double_image_plotter` that uses `plt` to plot two images side by side#

Remember to import matplotlib.pyplot as plt in Setup!

def double_image_plotter(img_1: np.ndarray, img_2: np.ndarray) -> None:
    """Function that plots 2 images side by side with their variable names as titles

    Parameters
    ----------
    img_1: np.ndarray
    left plotted image

    img_2: np.ndarray
    right plotted image

    Return
    ----------
    None: plot of the images

    """
    # Create a figure and axis
    fig, axes = plt.subplots(1, 2, figsize=(8, 6))  # 1 row, 2 columns

    # Plot images
    axes[0].imshow(img_1, cmap="gray", vmin=img_1.min(), vmax=img_1.max())
    axes[0].axis("off")  # Turn off axis
    axes[1].imshow(img_2, cmap="gray", vmin=img_2.min(), vmax=img_2.max())
    axes[1].axis("off")  # Turn off axis

    plt.tight_layout()  # Adjust layout

    # Show the plot
    plt.show()

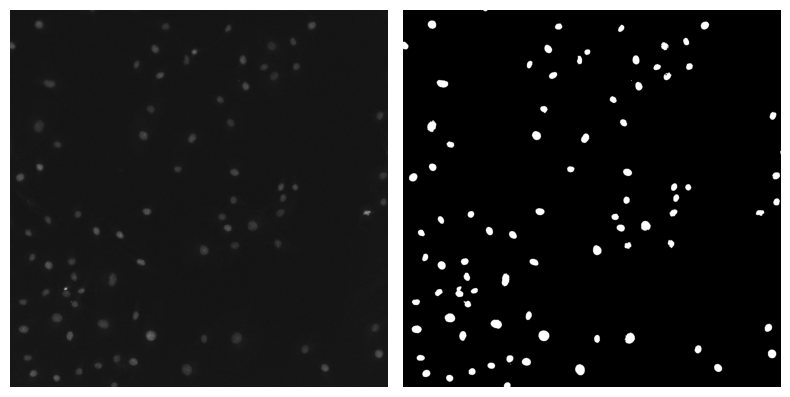

✍️ Exercise: View `raw_image` and `binary_mask` side by side using the `double_image_plotter` function you just made#

double_image_plotter(raw_image, binary_mask)

../../../_images/c09d82d95d5208ed430f910e583e839776813dececd343046a24761b27b917a9.png

4. Mask Labeling#

Concept#

Now that we have a binary mask that has white, or value True, pixels that match the image foreground and black, or value False, pixels that match the image background, we can continue further to distinguish individual objects within this mask. Labeling a mask is when we identify individual objects within a binary mask and assign them a unique numerical identifier.

Labeling a binary mask#

From skimage.measure we can use label() to label a curated binary mask.

Function	Description	How to import it	Documentation Link
`label()`	Label connected regions of an image for Instance segmentation	`from skimage.measure import label`	skimage.measure.label

Here’s how we use label from skimage.measure to label a binary mask:

from skimage.measure import label # put in Setup
labeled_image = label(binary_mask)

Here, label() will take the inputted binary_mask and count each connected object in the image. It will then assign each object a whole number starting from 1. It will then return an image where each object’s pixels have the value of its object’s assigned number, which we assign to the variable labeled_image!

✍️ Exercise: Write code to label `binary_mask` and assign it to the variable `labeled_image`#

Remember - we need to import the label function from skimage.measure in Setup!

labeled_image = label(binary_mask)

Displaying a labeled mask on top of the image#

Let’s now summarize our final segmentation result in 1 image by viewing the labeled_image overlaid onto the original raw_image. From skimage.color, we can use label2rgb to do this.

Function	Description	How to import it	Documentation Link
`label2rgb()`	Returns an RGB image where color-coded labels are painted over the image	`from skimage.color import label2rgb`	label2rgb

Here’s how we can use label2rgb from skimage.color to summarize our segmentation result:

from skimage.color import label2rgb # put in Setup
seg_summary = label2rgb(labeled_image, image = raw_image)

Here, label2rgb() is filled with 2 arguments:

The labeled mask labeled_image
The original image we want the labeled_image overlaid onto, specified as image = raw_image

The output will be an rgb image of the labeled mask overlaid onto the raw image, which is assigned to the variable seg_summary.

✍️ Exercise: Write code that creates an image of `labeled_image` overlaid onto `raw_image` and assign it to the variable `seg_summary`#

Remember - we need to import the label2rgb function from skimage.color in Setup!

seg_summary = label2rgb(labeled_image, image=raw_image)

/home/runner/work/bobiac/bobiac/.venv/lib/python3.12/site-packages/skimage/color/colorlabel.py:149: UserWarning: Negative intensities in `image` are not supported
  rgb = _label2rgb_overlay(

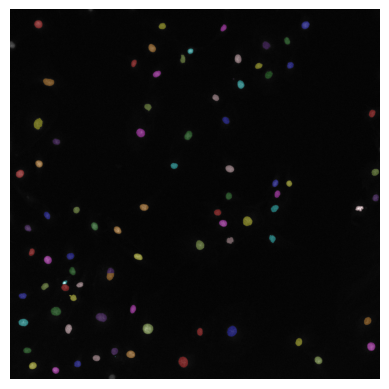

✍️ Exercise: View `seg_summary` with `plt.imshow()`#

plt.imshow(seg_summary)
plt.axis("off")  # Turn off axis
plt.show()

WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.08745135366916656..1.4824706792831421].

../../../_images/ca2f9f5aa931d13b20654345eb635981d02f0a36345082663d33978c7831492c.png

How does the segmentation result look? Are all labels corresponding to individual nuclei? If not, additional processing steps are needed to refine binary_mask.

5. Mask Refinement#

Concept#

Mask refinement is needed when a binary mask still does not accurately match the image foreground after filtering and thresholding. In the context of our nuclei example image, we need to apply additional processing steps to remove objects that are too small to be nuclei, fill any holes within nuclei, and separate touching nuclei.

Common mask refinement steps#

There are many different ways we can refine a binary mask. The table below summarizes the refinement steps we discussed in lecture:

Function Name	Description	How to import it	Documentation Link
`remove_small_objects()`	Removes objects smaller than the specified size from the foreground.	`from skimage.morphology import remove_small_objects`	skimage.morphology.remove_small_objects
`binary_closing()`	Performs morphological closing, a mathematical operation that results in small hole removal	`from skimage.morphology import binary_closing`	skimage.morphology.binary_closing
`watershed()`	Performs the Watershed transform, a useful algorithm for separating touching objects. The output is a labeled image.	`from skimage.segmentation import watershed`	skimage.segmentation.watershed

Let’s now walk through steps to remove objects smaller than nuclei with remove_small_objects(), fill in any holes within nuclei with binary_closing(), and then separate touching nuclei with watershed().

Removing objects smaller than nuclei#

In many cases, thresholding will be unsuccessful at rejecting image objects that are debris, as these tend to have high intensity values. However, we can use differences in object size to reject anything that is too small to be a nucleus.

From skimage.morphology we can use the remove_small_objects function to remove any connected objects of a specified min_size. Here is how we can do that:

from skimage.morphology import remove_small_objects # put in Setup
binary_mask_sized = remove_small_objects(binary_mask, min_size=10)

Here, remove_small_objects() will take the inputted binary_mask and set any connected object that is smaller than min_size=10 to have False values (in other words, be rejected as foreground). It will then return the updated binary mask, which we assigned to the variable binary_mask_sized.

✍️ Exercise: Write code to remove objects smaller than nuclei in `binary_mask` and assign it to the variable `binary_mask_sized`#

Remember, we need to import functions we want to use in Setup!

binary_mask_sized = remove_small_objects(binary_mask, min_size=10)

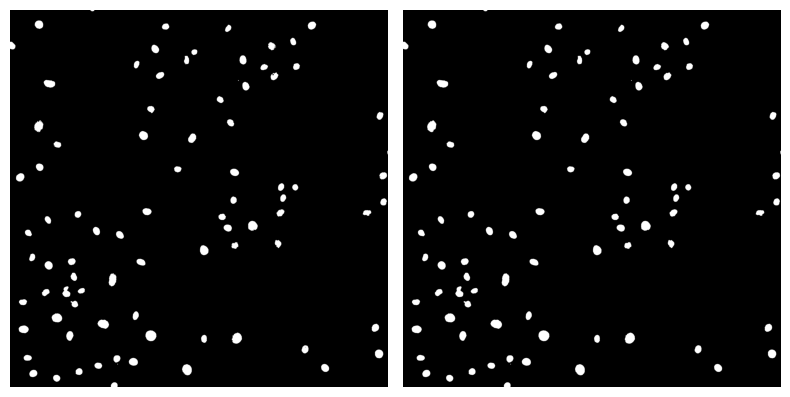

✍️ Exercise: Use our `double_image_plotter` function to display `binary_mask` and `binary_masked_sized` side by side#

double_image_plotter(binary_mask, binary_mask_sized)

../../../_images/133ab4df7d28eef9f67d49dcea8fac8ee23f8ab44b013623f02f3ae95b999724.png

Filling holes within nuclei#

While filtering helps reduce the effect of noise on thresholding, sometimes there will still be areas within an object that are below the minimum threshold value. These areas will show up as holes within a connected object. We can fill these holes by applying a morphological closing operation to the mask.

From skimage.morphology we can use the binary_closing function to fill small holes within nuclei. Here is how we can do that:

from skimage.morphology import binary_closing # put in Setup
from skimage.morphology import disk # put in Setup
binary_mask_filled = binary_closing(binary_mask_sized, disk(1))

Here, binary_closing() has two inputs:

The binary mask binary_mask_sized
A footprint disk(1), which is a disk shaped kernel of size 1

It uses these inputs to perform a morphological closing operation optimized for binary images. It will then return the updated binary mask, which we assign to the variable binary_mask_filled.

✍️ Exercise: Write code to fill holes within nuclei in `binary_mask_sized`, and assign the updated mask to the variable `binary_masked_filled`#

Remember, we need to import functions we want to use in Setup!

binary_mask_filled = binary_closing(binary_mask_sized, disk(5))

✍️ Exercise: Use our `double_image_plotter` function to display `binary_mask_sized` and `binary_mask_filled`#

double_image_plotter(binary_mask_sized, binary_mask_filled)

../../../_images/7f0c00ad5a42e2b7aeb19bbe04883c7bf9dab72c90431b2bfee49c9b1d904960.png

Separating touching nuclei#

Let’s now apply the Watershed transform to our binary_mask to separate any touching nuclei. From skimage.segmentation, we can use watershed() to do this.

The watershed() function needs the following inputs:

The inverse of the distance transform of the binary mask
The seeds: labeled image of the peaks of the distance transform
The binary mask

We are going to need a few additional functions to provide the first two inputs to the watershed() function.

Function	Description	How to import it	Documentation Link
`distance_transform_edt()`	Calculates the distance transform of the input	`from scipy.ndimage import distance_transform_edt`	scipy.ndimage.distance_transform_edt
`peak_local_max`	Remove objects smaller than the specified size from the foreground.	`from skimage.feature import peak_local_max`	skimage.feature.peak_local_max

Computing the distance transform#

We can use the distance_transform_edt() function from scipy.ndimage to get the distance transform of our refined binary_mask binary_mask_filled:

from scipy.ndimage import distance_transform_edt # put in Setup
# compute the distance transform
distance_transform = distance_transform_edt(binary_mask_filled)

✍️ Exercise: Write code to calculate the distance transform of `binary_mask_filled` and assign it to the variable `distance_transform`#

Remember to import what you need in Setup!

# compute the distance transform
distance_transform = distance_transform_edt(binary_mask_filled)

Creating seeds for Watershed#

Once we have the distance transform of binary_mask_filled, we can use the peak_local_max() function from skimage.feature to get its local maxima. However, we want to make sure that we get only 1 local maximum per object. We therefore can apply a footprint input confine a region the peak_local_max function will look for local maxima. Doing so will constrain how many maxima the function returns. We can also specify a min_distance separating peaks, which will also help constrain the number of maxima to be 1 per nucleus.

Here’s how we would write the code:

from skimage.feature import peak_local_max # put in Setup
# find local maxima coordinates in the distance transform
local_maxima_coords = peak_local_max(distance_transform, footprint=np.ones((25, 25)), min_distance=10)

✍️ Exercise: Write code that finds the local maxima coordinates of `distance_transform`. Print the coordinates to see how they are organized.#

Remember to import what you need in Setup!

# find local maxima coordinates in the distance transform
local_maxima_coords = peak_local_max(
    distance_transform, footprint=np.ones((25, 25)), min_distance=10
)
print(local_maxima_coords)

[[1992  859]
 [2195 1078]
 [2007 1383]
 [1321 1478]
 [1882  286]
 [1920  571]
 [ 772  814]
 [ 713  175]
 [1472 1183]
 [2102 2249]
 [  95  177]
 [2150  753]
 [1561  235]
 [1027   61]
 [1952   82]
 [ 100 1840]
 [2186 1919]
 [ 995 1368]
 [1639  626]
 [1650  626]
 [ 457  246]
 [ 965  182]
 [2221  141]
 [1941 2228]
 [1990  364]
 [ 311 1420]
 [ 474 1438]
 [1235  832]
 [1335 1330]
 [ 243  884]
 [ 789 1110]
 [1016 2274]
 [ 226 1594]
 [2250  284]
 [1351  526]
 [1375  668]
 [2131  651]
 [2074 1799]
 [1734  341]
 [2210  421]
 [1540  374]
 [ 412 1608]
 [ 350 1746]
 [1165 1362]
 [1252  413]
 [ 610  860]
 [1267 1294]
 [1542  797]
 [ 693 1344]
 [1799  394]
 [ 404  914]
 [ 649 2255]
 [2174  539]
 [ 106  950]
 [1174 2277]
 [1868  766]
 [1083 1653]
 [1633  388]
 [1241 1648]
 [1364  110]
 [ 977 1020]
 [1428 1633]
 [ 552 1281]
 [1087 1738]
 [ 826  287]
 [1150 1665]
 [1787   83]
 [2007 1182]
 [2125  104]
 [ 353 1549]
 [1725  218]
 [1442 1370]
 [1283  230]
 [ 198 1725]
 [ 262 1124]
 [1514  136]
 [ 336  771]
 [1717  437]
 [ 316 1076]
 [1241 2179]
 [ 115 1333]
 [1707  339]
 [ 435 1391]
 [2165  655]]

Now that we have the local maxima, we need to organize them for the watershed() function as a labeled image. We can do that by creating a binary image that’s the same size as our binary mask. We will want all values in this new image to be False except where the local maxima are. Therefore, let’s use np.zeros_like() to create a binary image filled with False values that’s the same size as binary_mask:

#create image that's the same size and dtype as binary_mask_filled
local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

✍️ Exercise: Write code that creates an image of `dtype=bool` that is the same size as `binary_mask`. Assign it to the variable `local_maxima_image`.#

# create image that's the same size and dtype as binary_mask_filled
local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

Now we need to add the local_maxima_coords to this new local_maxima_image. This is a tricky task, because local_maxima_coords organizes each (x,y) coordinate of where a local maximum is like this:

[[10, 20], # first peak at (row=10, col=20)
[30, 40], # second peak at (row=30, col=40)
[50, 60]] # third peak at (row=50, col=60)

We need a way to organize these coordinates so that we can insert all of the row and columns as separate arrays into local_maxima_coords. In other words, we need to organize the coordinates so they look like this:

[[10, 30, 50],  # all row indices
[20, 40, 60]]   # all column indices

We can do that by taking the transpose of local_maxima_coords. A transpose flips a matrix over its diagonal axis, effectively swapping rows and columns. In Python, we take the transpose of an np.array by writing:

local_maxima_coords.T

Here, the “.T” indicates that we want the transpose of local_maxima_coords.

✍️ Exercise: Write code that takes the transpose of `local_maxima_coords`, then print the result.#

print(local_maxima_coords.T)

[[1992 2195 2007 1321 1882 1920  772  713 1472 2102   95 2150 1561 1027
100 2186  995 1639 1650  457  965 2221 1941 1990  311  474 1235
243  789 1016  226 2250 1351 1375 2131 2074 1734 2210 1540  412
1165 1252  610 1267 1542  693 1799  404  649 2174  106 1174 1868
1633 1241 1364  977 1428  552 1087  826 1150 1787 2007 2125  353
1442 1283  198  262 1514  336 1717  316 1241  115 1707  435 2165]
 [ 859 1078 1383 1478  286  571  814  175 1183 2249  177  753  235   61
1840 1919 1368  626  626  246  182  141 2228  364 1420 1438  832
884 1110 2274 1594  284  526  668  651 1799  341  421  374 1608
1362  413  860 1294  797 1344  394  914 2255  539  950 2277  766
388 1648  110 1020 1633 1281 1738  287 1665   83 1182  104 1549
1370  230 1725 1124  136  771  437 1076 2179 1333  339 1391  655]]

We still have some work to do to get these coordinates into local_maxima_image. To pass the coordinates into local_maxima_image, we need to organize them as a tuple. We can do that with the tuple() function:

tuple(local_maxima_coords.T)

Now, the coordinates will be arranged as so:

array([10, 30, 50]),  # all row indices
array([20, 40, 60])   # all column indices

✍️ Exercise: Write code that converts the transpose of `local_maxima_coords` to a tuple. Print the result.#

print(tuple(local_maxima_coords.T))

(array([1992, 2195, 2007, 1321, 1882, 1920,  772,  713, 1472, 2102,   95,
       2150, 1561, 1027, 1952,  100, 2186,  995, 1639, 1650,  457,  965,
       2221, 1941, 1990,  311,  474, 1235, 1335,  243,  789, 1016,  226,
       2250, 1351, 1375, 2131, 2074, 1734, 2210, 1540,  412,  350, 1165,
       1252,  610, 1267, 1542,  693, 1799,  404,  649, 2174,  106, 1174,
       1868, 1083, 1633, 1241, 1364,  977, 1428,  552, 1087,  826, 1150,
       1787, 2007, 2125,  353, 1725, 1442, 1283,  198,  262, 1514,  336,
       1717,  316, 1241,  115, 1707,  435, 2165]), array([ 859, 1078, 1383, 1478,  286,  571,  814,  175, 1183, 2249,  177,
        753,  235,   61,   82, 1840, 1919, 1368,  626,  626,  246,  182,
        141, 2228,  364, 1420, 1438,  832, 1330,  884, 1110, 2274, 1594,
        284,  526,  668,  651, 1799,  341,  421,  374, 1608, 1746, 1362,
        413,  860, 1294,  797, 1344,  394,  914, 2255,  539,  950, 2277,
        766, 1653,  388, 1648,  110, 1020, 1633, 1281, 1738,  287, 1665,
         83, 1182,  104, 1549,  218, 1370,  230, 1725, 1124,  136,  771,
        437, 1076, 2179, 1333,  339, 1391,  655]))

This is exactly what we want them to look like to insert into local_maxima_image! Here’s how we can insert them:

local_maxima_image[tuple(local_maxima_coords.T)]

The last thing we need to do is make them all have value True, since local_maxima_image is a binary image. We can do that by writing:

# add the local_maxima_coords to the created local_maxima_image, after doing some work to organize them
local_maxima_image[tuple(local_maxima_coords.T)] = True

✍️ Exercise: Write code that adds the `local_maxima_coords` to `local_maxima_image`.#

# add the local_maxima_coords to the created local_maxima image
local_maxima_image[tuple(local_maxima_coords.T)] = True

Finally, we can label local_maxima_image to create seeds for the Watershed function.

# label the local_maxima_image to create seeds for the watershed function
seeds = label(local_maxima_image)

Hooray! We have our seeds! Let’s now put all of what we just learned together about how we used distance_transform to create seeds.

✍️ Exercise: Write code that uses `distance_transform` to create seeds for the Watershed algorithm. Assign the seeds to the variable `seeds`.#

# find local maxima coordinates in the distance transform
local_maxima_coords = peak_local_max(
    distance_transform, footprint=np.ones((25, 25)), min_distance=10
)

# create image that's the same size and dtype as binary_mask_filled
local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

# add the local_maxima_coords to the created local_maxima image
local_maxima_image[tuple(local_maxima_coords.T)] = True

# label the local_maxima image to create seeds for the watershed function
seeds = label(local_maxima_image)

Applying the Watershed Transform#

Now we have everything we need to input into the watershed() function:

The inverse of the distance transform of the binary mask: -distance_transform
The seeds: seeds
The binary mask: binary_mask_filled

We can now call the Watershed function as follows:

# apply the watershed algorithm to segment the image and get labels
from skimage.segmentation import watershed # put in Setup
labeled_ws_image = watershed(-distance_transform, seeds, mask=binary_mask_filled)

Here, watershed() will apply the Watershed Transform to the inputted binary_image_filled. It will return the transformed, labeled image. We assign it to the variable labeled_ws_image.

✍️ Exercise: Write code to apply a watershed transform to `binary_mask_filled` and assign it to the variable `labeled_ws_image`#

Remember to import what you need in Setup!

# apply the watershed algorithm to segment the image and get labels
labeled_ws_image = watershed(-distance_transform, seeds, mask=binary_mask_filled)

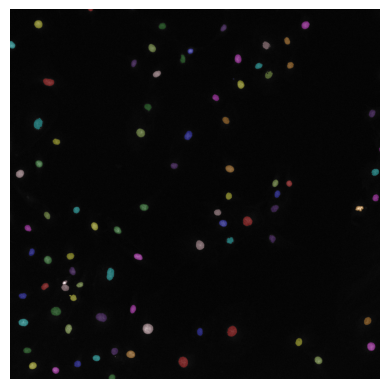

✍️ Exercise: Use `label2rgb()` to create an image of `labeled_ws_image` overlaid onto `raw_image` and assign it to the variable `seg_summary_refined`#

seg_summary_refined = label2rgb(labeled_ws_image, image=raw_image, bg_label=0)

✍️ Exercise: Use `plt` to display `seg_summary_refined`#

plt.imshow(seg_summary_refined)
plt.axis("off")  # Turn off axis
plt.show()

WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.08745135366916656..1.4824706792831421].

../../../_images/3d3025924fb4c33d52767a90b07e83cb6d6019a3f60c3044ac5f34dd99ca3766.png

END OF FIRST LAB SECTION - STOP HERE FOR LAST LECTURE COMPONENT!#

6. Processing Many Images#

Concept#

Statistically relevant & reproducible measurements come from analyzing many fluorescence images. Therefore, we need to adapt our code to efficiently run on many images, not just 1 at a time! We can do so by implementing a for loop to our image path handling. We can also add the ability to save output files using tifffile.imwrite().

Consolidate code for image processing steps#

The first step to processing many images is to write code to process a single image, just as we have done above in the previous sections.

✍️ Exercise: Copy and paste all of the code we wrote in the above sections to load and segment our single nucleus image#

Remember, we want code that does the following steps:

Specify dependencies
Load the image
Filter the image with a Gaussian filter
Threshold to generate a binary mask
Refine the mask: Remove small objects
Refine the mask: Fill small holes
Refine the mask: Watershed

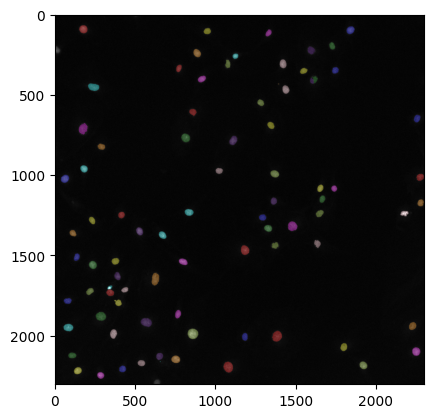

Review our final segmentation summary with label2rgb

# specify dependencies
import matplotlib.pyplot as plt
import ndv
import numpy as np
import tifffile
from scipy.ndimage import distance_transform_edt
from skimage.color import label2rgb
from skimage.feature import peak_local_max
from skimage.filters import gaussian, threshold_otsu
from skimage.measure import label
from skimage.morphology import binary_closing, remove_small_objects
from skimage.segmentation import watershed

# load the image
image_path = "../../../_static/images/classic_seg/DAPI_wf_0.tif"
raw_image = tifffile.imread(image_path)

# filter the image with gaussian filter
filtered_image = gaussian(raw_image, sigma=1)

# threshold filtered_image to generate binary mask
binary_mask = filtered_image > threshold_otsu(filtered_image)

# Remove small objects
binary_mask_sized = remove_small_objects(binary_mask, min_size=10)

# Fill small holes by performing morphological closing
binary_mask_filled = binary_closing(binary_mask_sized)

# apply watershed to separate nuclei and label mask
# compute the distance transform
distance_transform = distance_transform_edt(binary_mask_filled)

# find local maxima coordinates in the distance transform
local_maxima_coords = peak_local_max(
    distance_transform, footprint=np.ones((25, 25)), min_distance=10
)

# create image that's the same size and dtype as binary_mask_filled
local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

# add the local_maxima_coords to the created local_maxima image
local_maxima_image[tuple(local_maxima_coords.T)] = True

# label the local_maxima image to create seeds for the watershed function
seeds = label(local_maxima_image)

# apply the watershed algorithm to segment the image and get labels
labeled_ws_image = watershed(-distance_transform, seeds, mask=binary_mask_filled)

# visualize the segmentation result
seg_summary_refined = label2rgb(labeled_ws_image, image=raw_image, bg_label=0)
plt.imshow(seg_summary_refined)

WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.08745135366916656..1.4824706792831421].

<matplotlib.image.AxesImage at 0x7f39b456e540>

../../../_images/f6f53004e23ac4bb0f1463928ba40868c0435511fcf4cf76a217dc6247b944b3.png

Using a `for` loop to loop through image paths#

Now that we have the code in one place, we need to adapt it to be able to process more than one image. We can do that by looping through image file paths. From pathlib, we can use Path in conjunction with a for loop to iterate through many image file paths in a specified folder directory. Here’s how we would write the code to do that:

from pathlib import Path
folder_dir = Path("/Users/edelase/bobiac/") # update with your folder directory
for image_path in folder_dir.iterdir():
    # do things

Providing the function Path with a folder directory points Python to the folder we want to access files from. We assign it to the variable folder_dir to make it easy to work with. Writing folder_dir.iterdir() points to this folder we want to work in, and hands us all file paths within the folder. Since we want to loop through each file path in the folder, we set up our for loop to take each image_path within what folder_dir.iterdir() provides from the folder. We can then do whatever tasks we would like for each image_path.

✍️ Exercise: Write a for loop that prints all image file paths in a folder using `Path` and `iterdir()`#

from pathlib import Path

folder_dir = Path("../../../_static/images/classic_seg/")
for image_path in folder_dir.iterdir():
    print(image_path)

../../../_static/images/classic_seg/seg_methods_classic.png
../../../_static/images/classic_seg/DAPI_wf_0.tif

Using `glob` to loop through only tif image paths#

What if we have more than just tif images in our folder? Instead of using iterdir(), we can selectively loop through files ending with “.tif” using glob. Here’s how we would write the code to do that:

from pathlib import Path
import glob
folder_dir = Path("/Users/edelase/bobiac/")
for image_path in folder_dir.glob("*.tif"): # only loop through files ending in .tif
    # do things

Here, we are still using Path to point Python to the folder we want to access files from. However, instead of using iterdir() to hand us all file paths within the folder, we are using glob to only hand us file paths in the folder ending with “.tif”. We are then looking through each of these file paths.

✍️ Exercise: Write a for loop that prints all tif image file paths in a folder using `Path` and `glob`#

from pathlib import Path

folder_dir = Path("../../../_static/images/classic_seg/")
for image_path in folder_dir.glob("*.tif"):  # only loop through files ending in .tif
    print(image_path)

../../../_static/images/classic_seg/DAPI_wf_0.tif

Using a `for` loop to process many images#

Now that we have learned how to loop through image paths efficiently, we can now apply this concept to increase the throughput of our classic segmentation processing code. We can do that by putting each processing step, starting with reading the image, within the for loop.

from pathlib import Path
import glob
folder_dir = Path("/Users/edelase/bobiac/")
for image_path in folder_dir.glob("*.tif"): # only loop through files ending in .tif
    # load the image
    raw_image = tifffile.imread(image_path)
    ...
    break # Use for troubleshooting! Only do first loop until confident you're ready to loop through all files

Here, Python will loop through each image_path ending with “.tif” in folder_dir and conduct the indented lines of code. Until we’re ready to loop through all images and complete processing steps, we can use break as a last indented step in our for loop to only complete 1 loop.

✍️ Exercise: Improve your classic segmentation code above by adding a for loop to process many images#

from pathlib import Path

import ndv
import numpy as np
import tifffile
from scipy.ndimage import distance_transform_edt
from skimage.color import label2rgb
from skimage.feature import peak_local_max
from skimage.filters import gaussian, threshold_otsu
from skimage.measure import label
from skimage.morphology import binary_closing, remove_small_objects
from skimage.segmentation import watershed

folder_dir = Path("../../../_static/images/classic_seg/")

for image_path in folder_dir.glob("*.tif"):  # only loop through files ending in .tif
    # load the image
    raw_image = tifffile.imread(image_path)

    # filter the image with gaussian filter
    filtered_image = gaussian(raw_image, sigma=1)

    # threshold filtered_image to generate binary mask
    binary_mask = filtered_image > threshold_otsu(filtered_image)

    # Remove small objects
    binary_mask_sized = remove_small_objects(binary_mask, min_size=10)

    # Fill small holes by performing morphological closing
    binary_mask_filled = binary_closing(binary_mask_sized)

    # apply watershed to separate nuclei and label mask
    # compute the distance transform
    distance_transform = distance_transform_edt(binary_mask_filled)

    # find local maxima coordinates in the distance transform
    local_maxima_coords = peak_local_max(
        distance_transform, footprint=np.ones((25, 25)), min_distance=10
    )

    # create image that's the same size and dtype as binary_mask_filled
    local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

    # add the local_maxima_coords to the created local_maxima image
    local_maxima_image[tuple(local_maxima_coords.T)] = True

    # label the local_maxima image to create seeds for the watershed function
    seeds = label(local_maxima_image)

    # apply the watershed algorithm to segment the image and get labels
    labeled_ws_image = watershed(-distance_transform, seeds, mask=binary_mask_filled)

    # visualize the segmentation result
    seg_summary_refined = label2rgb(labeled_ws_image, image=raw_image, bg_label=0)
    plt.imshow(seg_summary_refined)

    break

Saving Output Files#

Now that we have our for loop set up, we can modify our code to save the labeled_ws_image as an outputted tif file. We can do this using tifffile.imwrite(). Here’s how we can write the code:

output_dir = Path("/Users/edelase/bobiac/results")
tifffile.imwrite(output_dir/"output_image.tif", labeled_ws_image.astype("uint32"))

Here, tifffile.imwrite is provided with 2 inputs:

output_dir/"output_image.tif" is the file path the image will be saved to, which ends with a specified file name
labeled_ws_image.astype("uint32") is a specification for the data being saved as “uint32”, or 32 bit

tifffile.imread() will use these two inputs to output a file saved to the output_dir folder.

NOTE: The dtype of a labeled image is important because it determines the maximum number of labels stored in the image. Since each object in a labeled image is assigned a unique integer label, the dtype determines the range of integers that can be used for this labeling (e.g. uint8 -> max 255 objects). By default, labels generated by the skimage.measure.label() function are of type uint32.

When we provide tifffile.imwrite() with an output file path, we run into a problem. We can’t just directly write, or hard code, a file name for the image we are trying to save because it will be different for each iteration of our for loop. Therefore, we need a way to automatically generate a file name for each loop. We can do this by accessing the stem of a given image_path, which would give us the starting file name without the .tif at the end:

image_path.stem # returns file name, without .tif at the end, from image_path

Let’s see this in action!

✍️ Exercise: Print the file name of each tif image in your folder using `stem`#

folder_dir = Path("../../../_static/images/classic_seg/")
for image_path in folder_dir.glob("*.tif"):  # only loop through files ending in .tif
    print(image_path.stem)  # file name, without .tif at the end

DAPI_wf_0

However, we want to add a “.tif” at the end, as well as an additional label to the file name to distinguish it from the original raw_image. We can do the following to add a “_labeled.tif” at the end of the file name:

f"{image_path.stem}_labeled.tif"

Here, the f before the double quotes to start a str cues Python to know that this is a formatted string. Formatted strings are a way to insert variables into strings. In this case, we are inserting the file name that image_path.stem returns into the beginning of a string that ends with "_labeled.tif". Together, this will give us the full file name to save the image.

To make it a full file path, we can combine it with our output_dir:

output_filepath = output_dir/f"{image_path.stem}_labeled.tif"

Now, let’s apply these modifications to our image processing code:

input_dir = Path("/Users/edelase/bobiac/")
output_dir = Path("/Users/edelase/bobiac/results")
for image_path in input_dir.glob("*.tif"): # only loop through files ending in .tif
    # do processing steps

    # save file
    output_filepath = output_dir/f"{image_path.stem}_labeled.tif"
    tifffile.imwrite(output_filepath, labeled_ws_image.astype("uint32"))

Now, let’s apply these concepts to our segmentation code so that we can save each final labeled image as an outputted tif file.

✍️ Exercise: Modify your classic segmentation code that processes many images to save each `labeled_ws_image`#

from pathlib import Path

import numpy as np
import tifffile
from scipy.ndimage import distance_transform_edt
from skimage.feature import peak_local_max
from skimage.filters import gaussian, threshold_otsu
from skimage.measure import label
from skimage.morphology import binary_closing, remove_small_objects
from skimage.segmentation import watershed

input_dir = Path("../../../_static/images/classic_seg/")
output_dir = Path("../../../_static/images/classic_seg/")

for image_path in input_dir.glob("*.tif"):  # only loop through files ending in .tif
    # load the image
    raw_image = tifffile.imread(image_path)

    # filter the image with gaussian filter
    filtered_image = gaussian(raw_image, sigma=1)

    # threshold filtered_image to generate binary mask
    binary_mask = filtered_image > threshold_otsu(filtered_image)

    # Remove small objects
    binary_mask_sized = remove_small_objects(binary_mask, min_size=10)

    # Fill small holes by performing morphological closing
    binary_mask_filled = binary_closing(binary_mask_sized)

    # apply watershed to separate nuclei and label mask
    # compute the distance transform
    distance_transform = distance_transform_edt(binary_mask_filled)

    # find local maxima coordinates in the distance transform
    local_maxima_coords = peak_local_max(
        distance_transform, footprint=np.ones((25, 25)), min_distance=10
    )

    # create image that's the same size and dtype as binary_mask_filled
    local_maxima_image = np.zeros_like(binary_mask_filled, dtype=bool)

    # add the local_maxima_coords to the created local_maxima image
    local_maxima_image[tuple(local_maxima_coords.T)] = True

    # label the local_maxima image to create seeds for the watershed function
    seeds = label(local_maxima_image)

    # apply the watershed algorithm to segment the image and get labels
    labeled_ws_image = watershed(-distance_transform, seeds, mask=binary_mask_filled)

    # visualize the segmentation result
    seg_summary_refined = label2rgb(labeled_ws_image, image=raw_image, bg_label=0)
    plt.imshow(seg_summary_refined)

    # save labeled_ws_image
    output_filename = output_dir / f"{image_path.stem}_labeled.tif"
    tifffile.imwrite(output_filename, labeled_ws_image.astype("uint32"))

    break

When you are happy with the code, simply remove the break statement to run the code on all images in the folder (maybe also remove the visualization step).

Classical Segmentation

Contents

Classical Segmentation#

Overview#

0. Setup#

Concept#

✍️ Exercise: Specify dependencies and run the code block for each section#

1. Loading an Image#

Concept#

Specifying your file’s path#

✍️ Exercise: Specify your image file’s path and assign it to the variable image_path#

Loading an image#

✍️ Exercise: Use tifffile to read the image and assign it to the variable raw_image. Then, print its shape and dtype#

Viewing the image#

✍️ Exercise: Use ndv to view the image raw_image#

2. Filtering#

Concept#

Applying a filter to an image#

✍️ Exercise: Write code to apply a Gaussian blur filter to raw_image and assign it to the variable filtered_image#

✍️ Exercise: View filtered_image with ndv#

3. Thresholding#

Concept#

Defining a threshold#

✍️ Exercise: Write code to calculate a threshold on filtered_image using Otsu’s method#

Generating a binary mask#

✍️ Exercise: Write code to threshold filtered_image and generate a binary image assigned to the variable binary_mask. Print this image’s minimum and maximum values.#

Comparing the binary mask to the raw image#

✍️ Exercise: Write a function named double_image_plotter that uses plt to plot two images side by side#

✍️ Exercise: View raw_image and binary_mask side by side using the double_image_plotter function you just made#

4. Mask Labeling#

Concept#

Labeling a binary mask#

✍️ Exercise: Write code to label binary_mask and assign it to the variable labeled_image#

Displaying a labeled mask on top of the image#

✍️ Exercise: Write code that creates an image of labeled_image overlaid onto raw_image and assign it to the variable seg_summary#

✍️ Exercise: View seg_summary with plt.imshow()#

5. Mask Refinement#

Concept#

Common mask refinement steps#

Removing objects smaller than nuclei#

✍️ Exercise: Write code to remove objects smaller than nuclei in binary_mask and assign it to the variable binary_mask_sized#

✍️ Exercise: Use our double_image_plotter function to display binary_mask and binary_masked_sized side by side#

Filling holes within nuclei#

✍️ Exercise: Write code to fill holes within nuclei in binary_mask_sized, and assign the updated mask to the variable binary_masked_filled#

✍️ Exercise: Use our double_image_plotter function to display binary_mask_sized and binary_mask_filled#

Separating touching nuclei#

Computing the distance transform#

✍️ Exercise: Write code to calculate the distance transform of binary_mask_filled and assign it to the variable distance_transform#

Creating seeds for Watershed#

✍️ Exercise: Write code that finds the local maxima coordinates of distance_transform. Print the coordinates to see how they are organized.#

✍️ Exercise: Write code that creates an image of dtype=bool that is the same size as binary_mask. Assign it to the variable local_maxima_image.#

✍️ Exercise: Write code that takes the transpose of local_maxima_coords, then print the result.#

✍️ Exercise: Write code that converts the transpose of local_maxima_coords to a tuple. Print the result.#

✍️ Exercise: Write code that adds the local_maxima_coords to local_maxima_image.#

✍️ Exercise: Write code that uses distance_transform to create seeds for the Watershed algorithm. Assign the seeds to the variable seeds.#

Applying the Watershed Transform#

✍️ Exercise: Write code to apply a watershed transform to binary_mask_filled and assign it to the variable labeled_ws_image#

✍️ Exercise: Use label2rgb() to create an image of labeled_ws_image overlaid onto raw_image and assign it to the variable seg_summary_refined#

✍️ Exercise: Use plt to display seg_summary_refined#

END OF FIRST LAB SECTION - STOP HERE FOR LAST LECTURE COMPONENT!#

6. Processing Many Images#

Concept#

Consolidate code for image processing steps#

✍️ Exercise: Copy and paste all of the code we wrote in the above sections to load and segment our single nucleus image#

Using a for loop to loop through image paths#

✍️ Exercise: Write a for loop that prints all image file paths in a folder using Path and iterdir()#

Using glob to loop through only tif image paths#

✍️ Exercise: Write a for loop that prints all tif image file paths in a folder using Path and glob#

Using a for loop to process many images#

✍️ Exercise: Improve your classic segmentation code above by adding a for loop to process many images#

Saving Output Files#

✍️ Exercise: Print the file name of each tif image in your folder using stem#

✍️ Exercise: Modify your classic segmentation code that processes many images to save each labeled_ws_image#

✍️ Exercise: Specify your image file’s path and assign it to the variable `image_path`#

✍️ Exercise: Use `tifffile` to read the image and assign it to the variable `raw_image`. Then, print its shape and dtype#

✍️ Exercise: Use `ndv` to view the image `raw_image`#

✍️ Exercise: Write code to apply a Gaussian blur filter to `raw_image` and assign it to the variable `filtered_image`#

✍️ Exercise: View `filtered_image` with `ndv`#

✍️ Exercise: Write code to calculate a threshold on `filtered_image` using Otsu’s method#

✍️ Exercise: Write code to threshold `filtered_image` and generate a binary image assigned to the variable `binary_mask`. Print this image’s minimum and maximum values.#

✍️ Exercise: Write a function named `double_image_plotter` that uses `plt` to plot two images side by side#

✍️ Exercise: View `raw_image` and `binary_mask` side by side using the `double_image_plotter` function you just made#

✍️ Exercise: Write code to label `binary_mask` and assign it to the variable `labeled_image`#

✍️ Exercise: Write code that creates an image of `labeled_image` overlaid onto `raw_image` and assign it to the variable `seg_summary`#

✍️ Exercise: View `seg_summary` with `plt.imshow()`#

✍️ Exercise: Write code to remove objects smaller than nuclei in `binary_mask` and assign it to the variable `binary_mask_sized`#

✍️ Exercise: Use our `double_image_plotter` function to display `binary_mask` and `binary_masked_sized` side by side#

✍️ Exercise: Write code to fill holes within nuclei in `binary_mask_sized`, and assign the updated mask to the variable `binary_masked_filled`#

✍️ Exercise: Use our `double_image_plotter` function to display `binary_mask_sized` and `binary_mask_filled`#

✍️ Exercise: Write code to calculate the distance transform of `binary_mask_filled` and assign it to the variable `distance_transform`#

✍️ Exercise: Write code that finds the local maxima coordinates of `distance_transform`. Print the coordinates to see how they are organized.#

✍️ Exercise: Write code that creates an image of `dtype=bool` that is the same size as `binary_mask`. Assign it to the variable `local_maxima_image`.#

✍️ Exercise: Write code that takes the transpose of `local_maxima_coords`, then print the result.#

✍️ Exercise: Write code that converts the transpose of `local_maxima_coords` to a tuple. Print the result.#

✍️ Exercise: Write code that adds the `local_maxima_coords` to `local_maxima_image`.#

✍️ Exercise: Write code that uses `distance_transform` to create seeds for the Watershed algorithm. Assign the seeds to the variable `seeds`.#

✍️ Exercise: Write code to apply a watershed transform to `binary_mask_filled` and assign it to the variable `labeled_ws_image`#

✍️ Exercise: Use `label2rgb()` to create an image of `labeled_ws_image` overlaid onto `raw_image` and assign it to the variable `seg_summary_refined`#

✍️ Exercise: Use `plt` to display `seg_summary_refined`#

Using a `for` loop to loop through image paths#

✍️ Exercise: Write a for loop that prints all image file paths in a folder using `Path` and `iterdir()`#

Using `glob` to loop through only tif image paths#

✍️ Exercise: Write a for loop that prints all tif image file paths in a folder using `Path` and `glob`#

Using a `for` loop to process many images#

✍️ Exercise: Print the file name of each tif image in your folder using `stem`#

✍️ Exercise: Modify your classic segmentation code that processes many images to save each `labeled_ws_image`#
